XSLi subwoofer
XSLi subwoofer
Subwoofers
Installation specific small to medium format flyable cardioid subwoofer
- Components 18"/12"
- Dispersion Cardioid
- SPLmax 137 dB
- Weight 66 kg / 146 lb
Article number Z0778
Product description
The XSLi-SUB is a cardioid subwoofer for the XSLi System. It can be used to supplement XSLi8 and XSLi12 loudspeakers, either flown (XSLi-SUB) or ground stacked (XSLi-GSUB).
When the XSLi-SUB Mounting frame is used, XSLi-SUB cabinets can be flown as pure SUB columns or in mixed arrays above XSLi-TOP cabinets using the additional XSLi-SUB Mounting adapter. The XSLi-SUB is an actively driven, 2-way bass-reflex design housing two long excursion neodymium drivers; an 18” driver faces to the front of the cabinet, and a 12” driver radiates to the rear. The front and rear facing drivers operate in independent bass-reflex chambers and are driven from separate amplifier channels. Two XSLi-SUBs can be linked to a pair of D40 amplifier channels.
The subwoofer’s cardioid dispersion pattern reduces unwanted energy behind the system, resulting in less excitation of the reverberant field to deliver highly accurate low frequency reproduction. The frequency response extends from 37 Hz to 110 Hz (35 Hz to 85 Hz in INFRA mode). Two XSLi-SUBs can be linked to a pair of 40D amplifier channels.

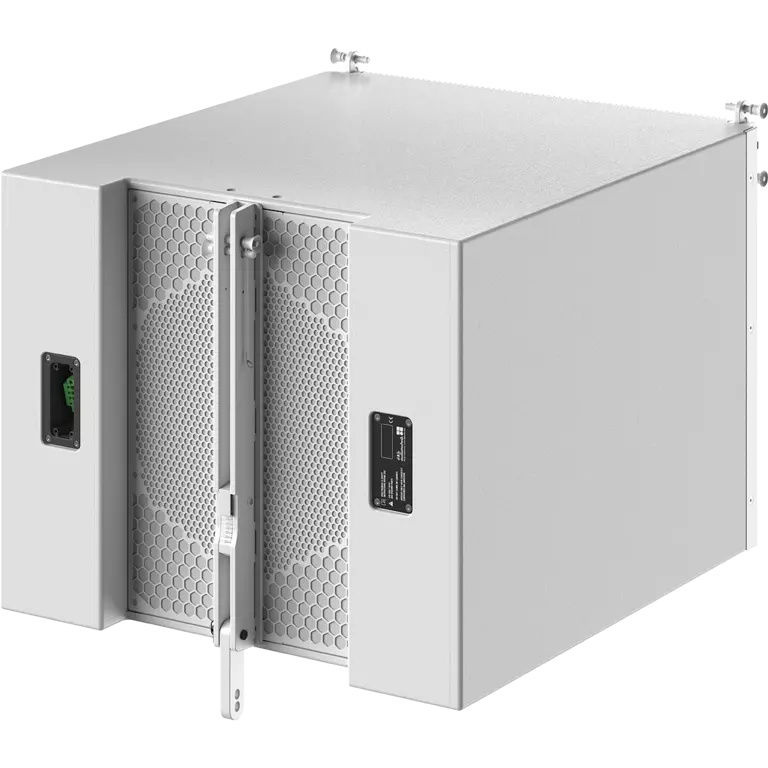

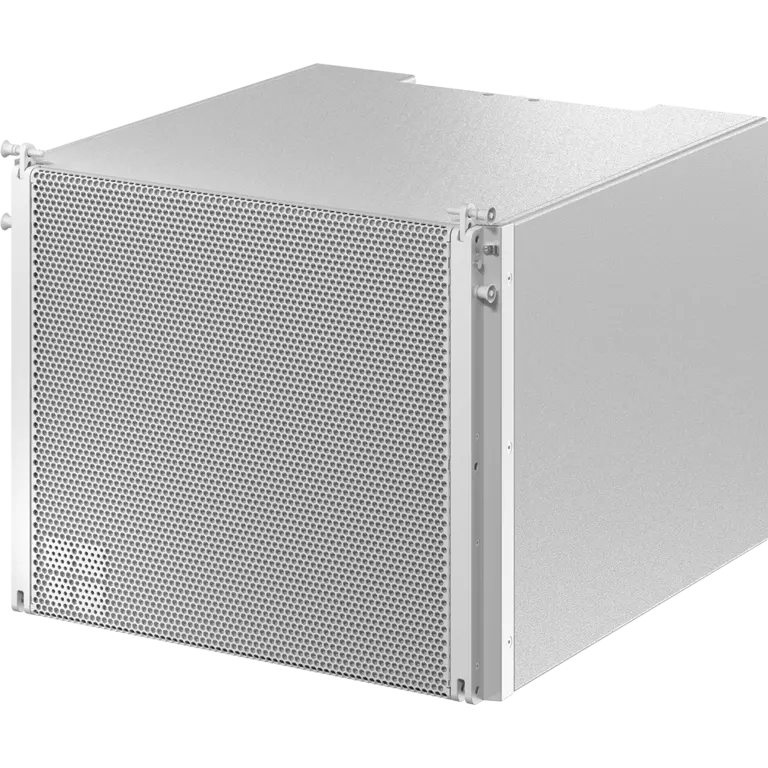

The cabinets are constructed from marine plywood and have an impact and weather protected PCP (Polyurea Cabinet Protection) finish.The front and rear of the cabinet is protected by a rigid metal grille backed by an acoustically transparent and water repellent fabric.
Amplifiers
The following amplifiers can be used to drive the XSLi-SUB.
Installation
with D40/D80/40D
1x 12" rear LF driver
Phoenix option
22.2 x 27.6 x 30.4"
146 lb
1 1 m, free field, SPL max peak, test signal: pink noise with crest factor 4, one speaker driven
