D90 amplifier
D90 amplifier
Mobile specific four channel amplifier
- Maximum output power
4 x 5400/2700 W into 4/8 Ω - Maximum output voltage/current
210 Vpeak / 78 Apeak - Monitoring display, Color TFT touchscreen, 4.3" / 480 x 272 pixel
- All current d&b loudspeaker setup
Product description
The D90 amplifier represents a new performance level of four channel Class D amplifiers, purposely designed to meet vital requirements for touring and rental productions companies, where high flexibility with system design and production needs are imperative.
With key features such as maximum output voltage, digital signal processing capabilities, and the AutoStandby and AutoWakeup, the D90 amplifier reduces the overall power consumption of the system.
The D90 incorporates comprehensive loudspeaker management, switchable filter functions, and definable equalization.
The D90 amplifier has a dynamic range of 119 dB (unweighted) and is designed to drive high voltage d&b loudspeakers while providing extensive protection capabilities.

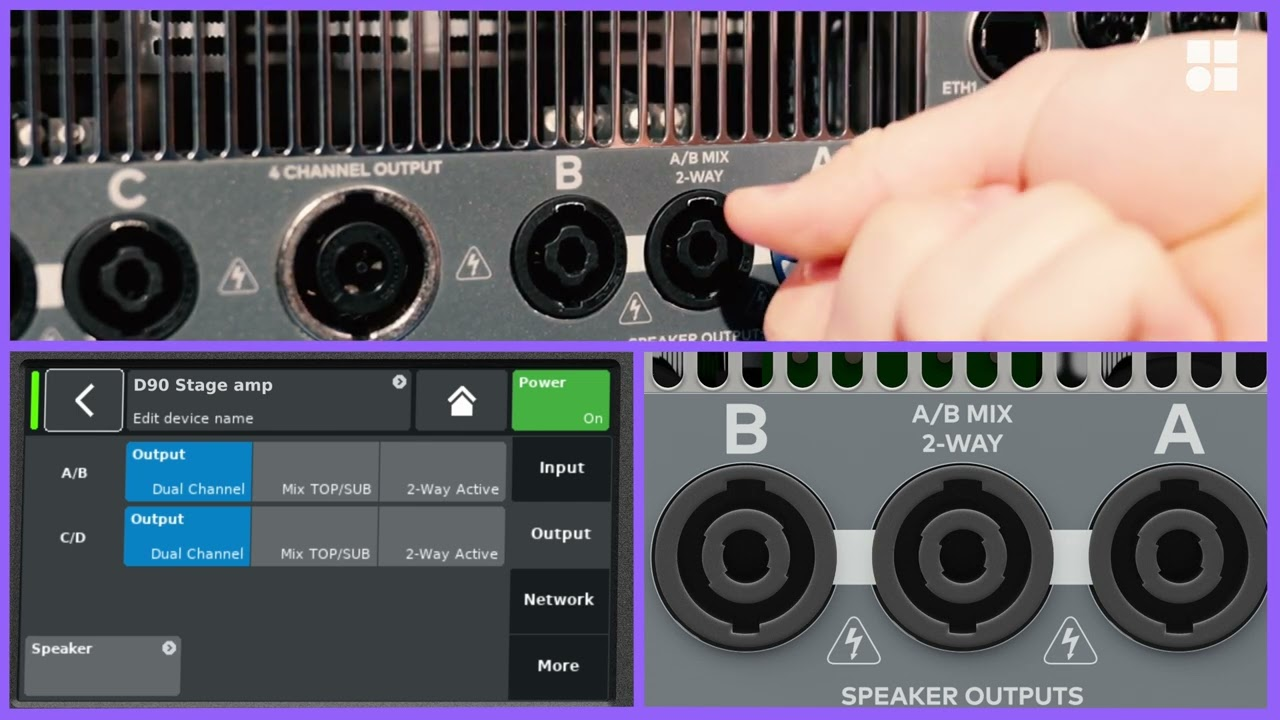

The user interface of the amplifier consists of a 4.3" (480 x 272 px) colour touchscreen in conjunction with a digital rotary encoder providing device configuration and enhanced status monitoring information.
The D90 amplifier features a flexible Fallback structure, ensuring the transmission of a secondary signal when required.
Remote control and full system integration are realized using the d&b ArrayCalc simulation software and R1 Remote control software.
CF = 12 dB at 4 / 8 ohms
41.5 lb
